Sanitary Hose Tensile Testing Machine Universal Tensile Strength Tester

Name: Sanitary Hose Tensile Testing Machine Universal Tensile Strength Tester
Brand: HaiDa
Price: 2 USD

China Sanitary Hose Tensile Testing Machine Universal Tensile Strength Tester wholesale

Type : Testing Machine

Brand Name : HaiDa

Place of Origin : Guangdong, China

Accuracy : ≤0.5%

Application : Tissue Paper Test

customized support : OEM, ODM

power : 500w

Protection Class : /

Voltage : 220 V

warranty : 1 year

Logo/graphic design : Hot Stamping, SCREEN PRINTING

Load capacity : 50N/1kN/2kN

Motor : 400w servo motor

Driver : 400w servo driver

Control method : Computer/touch screen control

Data output : USB/Windows mode /Office mode /thermal printer output

Screw : Ball screw

Adjustable speed : 0.1-500mm/min (Standard Test speed 125± 0.1 mm/min)

Unit switching : gf/kgf/N//kN/LBf/T

Load accuracy : ≤0.5%

Net weight : 70Kg

MOQ : 1

Price : $2,400-4,250

Contact Now

Product Description

Sanitary Hose Tensile Testing Machine Universal Tensile Strength Tester

Sanitary Hose tensile test machine

This machine is computer-controlled and is mainly test the tensile strength of hose of Shower and taps.

Specification

Item	Description
Load capacity	50N/1kN/2kN
Motor	400w servo motor
Driver	400w servo driver
Control method	Computer/touch screen control
Data output	USB/Windows mode /Office mode /thermal printer output (with printing curve function)
Screw	Ball screw
Adjustable speed	0.1-500mm/min (Standard Test speed 125± 0.1 mm/min)

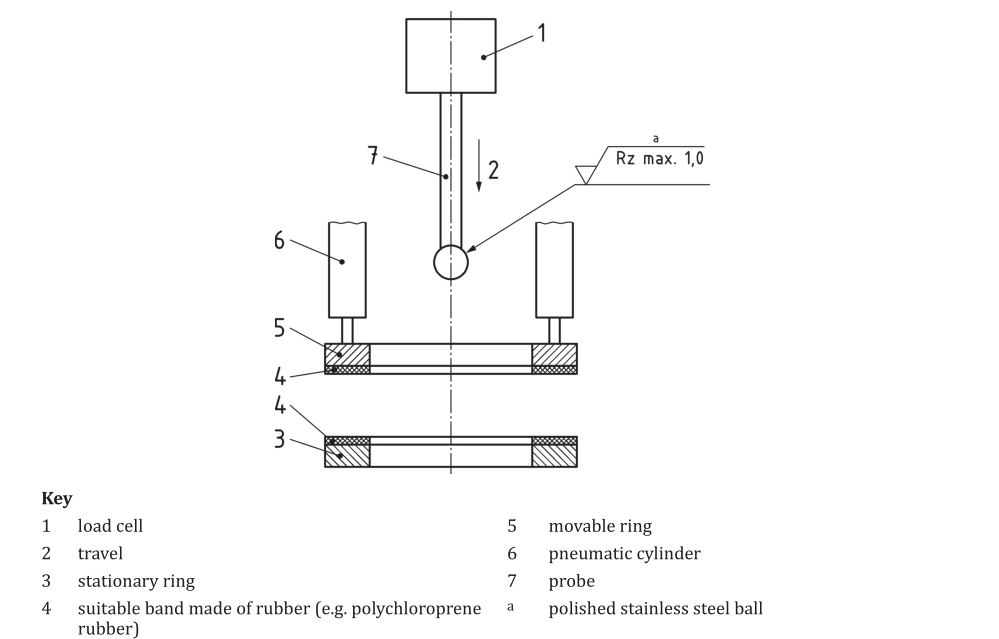

Ball diameter	Φ16 ±0.05mm Sphericity: better than 1 µm.
Pressure ring diameter	Φ50±0.2 mm Optional: Φ89±0.2 mm
Vertical test space	900mm (Not including clamp)
Load resolution	1/250,000
Load accuracy	≤0.5%
Unit switching	gf/kgf/N//kN/LBf/T
Dimension	5805501250mm(LWH)
Net weight	70Kg
Power	1∮ AC 220V 500W
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Applications
* Tested sample: laminated materials, paper, wood, leather, rubber & plastic, metal material, etc.
* Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
* Deformation under defined load: Test deformation under defined load of tested sample
* Load under defined deformation: Test load under defined deformation of tested sample
* Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Standard

* Dry: GB/T 24328.7-2020/ISO 12625-9:2015

* Wet: GB/T 24328.9-2020, ISO 12625-11: 2012

Clamps

Company Profile

Our Partners

Our Advantages

Our Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
